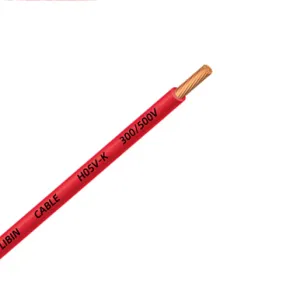

H05V-K Copper Core PVC Insulated Flexible Wire

Our Copper Core PVC Insulated Flexible Wire provides superior conductivity, durability, and flexibility for a wide range of electrical applications. Made with high-purity copper strands, it ensures efficient power transmission while remaining easy to install in tight or complex spaces. The PVC insulation offers excellent protection against heat, moisture, and corrosion, making it ideal for residential, commercial, and industrial wiring projects. Perfect for electrical circuits, appliances, and machinery, this flexible copper wire combines safety, reliability, and long-lasting performance in a...

Inquiry

E-mail：470647052@qq.com

WhatsApp：+86 13391229506

Detailed Description

H05V-K 300/500V

Copper Core PVC Insulated Flexible Wire

Applications

This cable is widely used in electrical wiring, electronic instruments, automobiles, distribution cabinets, automation equipment, controller wiring, and other industries. It can also be used for indoor electrical appliances, home appliances, mechanical equipment installation wiring, power and lighting wiring, and more.

Product Structure

Reference Standard: EN 50525-2-31

Conductor: Stranded fine-grained bare copper wire, in accordance with IEC 60228, Category V conductor

Insulation Material: Environmentally friendly PVC

Color: Customizable upon request

Technical Parameters

Rated Voltage: 300/500V

Test Voltage: 2000V

Rated Temperature: -15°C to +70°C

Minimum Bend Radius: 6x Cable OD

Environmental Requirements: RoHS and REACH Compliant

Flame Retardant: Compliant with IEC 60332-3

Product Features

Excellent flexibility and easy installation

Excellent peelability

Product Parameters

Nominal cross-sectional area (mm²)	Insulation thickness (mm)	Cable outer diameter (mm)	Conductor resistance at 20°C.max(Q/km)	Insulation resistance at 70℃.min(MO *km)	Cable weight (kg/km)
0.5	0.6	2.2	39	0.013	8
0.75	0.6	2.3	26	0.011	12
1.0	0.6	2.5	19.5	0.01	15.4
