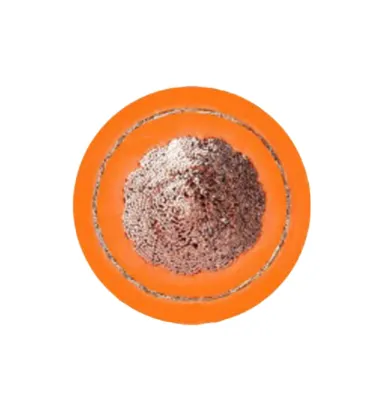

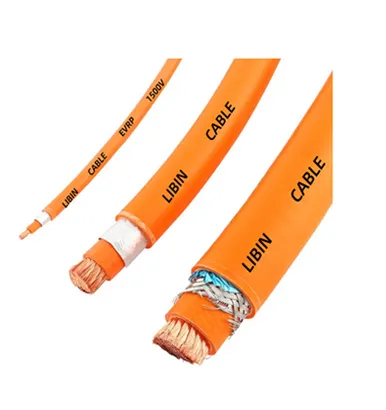

EYJR-125 AC1000V/DC1500V Single Core Shielded Automotive High Voltage Cable

The Single Core Shielded Automotive High Voltage Cable is engineered for electric and hybrid vehicles, providing safe and efficient high-voltage power transmission. Featuring a high-conductivity copper or aluminum conductor, the cable ensures minimal energy loss and consistent electrical performance. Its integrated shielding layer protects against electromagnetic interference (EMI), enhancing the reliability of sensitive automotive electronics. Designed with advanced insulation materials, it offers excellent resistance to heat, abrasion, and chemicals while maintaining flexibility for compact...

Inquiry

E-mail：470647052@qq.com

WhatsApp：+86 13391229506

Detailed Description

EYJR-125 AC1000V/DC1500V Single-Core Unshielded Automotive High-Voltage Cable

Applications

Suitable for connecting charging ports to batteries, within batteries, between batteries and engines and other components, and in battery energy storage devices.

As a carrier for power transmission, electric vehicle high-voltage cables have very high performance requirements due to the harsh in-vehicle environment.

Technical Parameters

Reference Standards: ISO 6722-2006 QC/T1037-2016

Rated Voltage: AC1000V/DC1500V

Rated Temperature: -40°C to +125°C

Conductor: Stranded fine copper wire

Insulation Material: Irradiated XLPO

Insulation Color: RAL2003 Orange or other custom colors

Minimum Bend Radius: Fixed Installation 6 x D (Cable Outer Diameter)

Dielectric Strength Test: 5000V/5min

Spark Test: 10kV

Flame Retardancy: Passes 30s Self-Extinguishing Test

Finished Cable Heat Shrinkage:

Insulation: ≤2mm

Environmental Requirements: RoHS Compliant REACH Compliant

Halogen-free: Meets GB/T19666-2019

Low smoke: Meets IEC61034-2:2019

Special marking: image.png

Product Features

Small cable diameter, saving installation space

Oil-resistant, heat-resistant, low-temperature-resistant, flame-retardant, abrasion-resistant, and possesses excellent mechanical properties

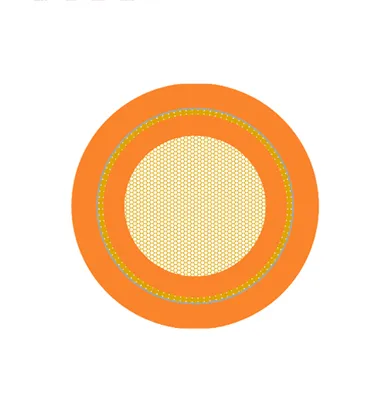

Nominal cross-section mm²	Conductor structure (Number of roots/diameter)	Nominal insulation thickness mm	Nominal sheath thickness mm	Wire outer diameter max. mm	20℃ Conductor resistance max (Q/km)
Nominal cross-section mm²	Conductor structure (Number of roots/diameter)	Nominal insulation thickness mm	Nominal sheath thickness mm	Wire outer diameter max. mm	copper core	Tinned copper core
10	320/0.20	1	1.3	9.9	1.68~1.82	1.70~1.85
16	510/0.20	1.1	1.3	11.7	1.07~1.16	1.09~1.18
25	790/0.20	1.3	1.5	14.5	0.688~0.743	0.701~0.757
35	1090/0.20	1.3	1.5	15.7	0.489~0.527	0.500~0.538
50	1600/0.20	1.5	1.7	18.0	0.343~0.368	0.350~0.375
70	2175/0.20	1.5	1.7	20.0	0.243~0.259	0.248~0.2647
95	3000/0.20	1.5	1.7	22.5	0.185~0.196	0.189~0.200
120	3700/0.20	1.5	1.7	24.2	0.146~0.153	0.149~0.156
